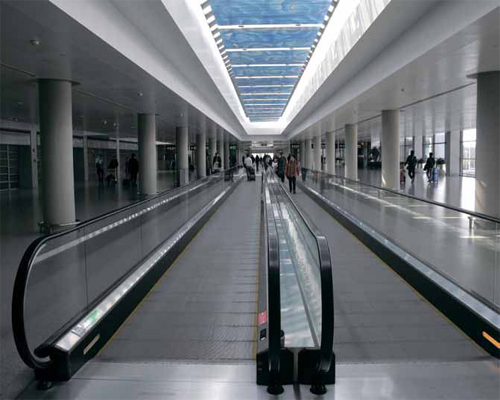

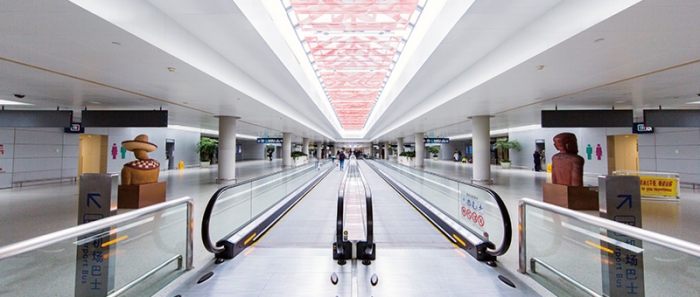

NameChinese Outdoor Type Moving Walk
Brand name:PORSCHELEVATOR
Speed:0.5m/s
Application:Indoor. 16-hr operation daily
Horizontal Span:≤ 40m
Inclination:10° /11° /12°
Step Width:600mm/800mm/1000mm
Capacity:6750/9000per. /h
Main Power:380V/50Hz/3P
Balustrade:Tempered glass(10mm)
Handrail Bracket:Stainless steel
Handrail:Black
Balustrade Height:900mm
Inner& Outer Decking:Hairline St. St

Product Description

  • PORSCHELEVATOR automatic walkway, through independent development and absorption of advanced technology, perfectly built large width and large flow equipment, suitable for airports, railway stations, department stores and other places, leading the building of new space.


    Product features:

    Super transmission, headquarter space

    Max height high strength handrail guardrail, skirt board protection height up to 1000mm, improve safety performance.

    The width of the brake pedal can reach up to 1.4 meters at the maximum, which can realize super-flow passenger and cargo transport.

    Advanced PC board control system with large capacity, fast reaction speed, high stability and more complete functions.

    The consummate skill is the most perfect

    The truss adopts robot welding technology, which greatly improves the manufacturing process, and has the advantages of quality and lean, durability and aesthetics.

    The ultra-quiet host can effectively prevent vibration, the pedal has a special silent vibration damping design, and the tensioning device is more effective in preventing noise.

    The automatic lubrication system provides the ideal automatic lubrication of the transmission chain during operation to extend the service life of the transmission mechanism.

    Strobe rails with large arc radius can be matched with rolling wheel sets to effectively reduce friction and extend the service life of handrails.
