Name | Heavy-Duty Type Escalator |
Brand name: | PORSCHELEVATOR |
Speed: | 0.5m/s |
Layout: | Parallel |
Step width (mm): | 800 |
Up-down horizontal step: | 2/2 |
Traveling height: | H3000 m |
Horizontal span: | L9960mm |
Angle of inclination: | 30°,35° |
Start method: | VVVF |
Power voltage: | 380V |
Lighting voltage: | 220V |
Power frequency: | 50HZ |
StepStep: | Hairline stainless steel |
Product Description
PORSCHELEVATOR Product description of the Heavy-Duty Type Escalator

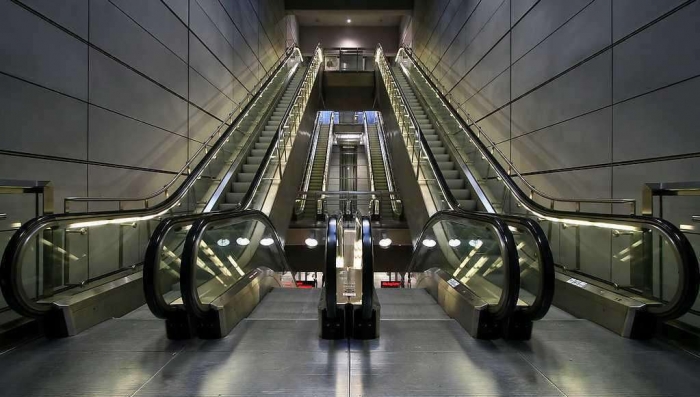

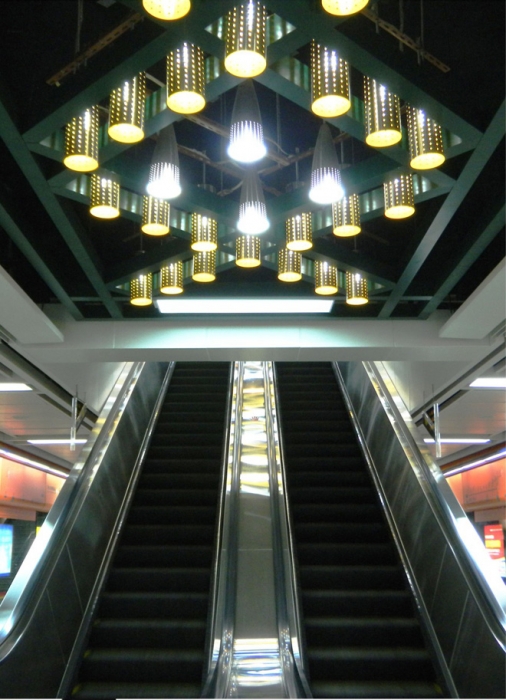

Overloaded bus type escalator is a specially designed for public transport tailored overloading type escalators, excellent product quality, superior performance and leading security, can fully meet the high hoisting height, traffic was great, transportation time long rigid bearing requirement, for the subway, railway stations, airports and other public transportation sites to provide the best solution.
Product features:
Control stability, drive persistence
The microcomputer board master control system developed by shuishi is faster and has higher stability.
The double mode of converter control and star delta conversion ensures the continuous and stable operation of heavy-duty traffic escalator.
The hand-v type of hand-belt increases the rotating contact area of the rotating end, increases the friction of the hand-arm, and provides greater driving force for the operation of the escalator.
Control the end drive mode to reduce the friction coefficient of the handrail and reduce energy consumption.
Steel and iron, strong and durable
After the computer finite element analysis of the whole machine structure, the truss adopts robot welding technology, which is of lean quality, durable and elegant.
The upper and lower drive of the upper part adopts the setting of large curvature radius and adds unloading guide rail, which can greatly reduce the load pressure of the main and auxiliary wheels of the ladder road and improve the service life of the main and auxiliary wheels.
Add outer step chain of roller, no need to remove chain link, single unit can replace step main wheel, saving time of site maintenance.
All aspects, safety and energy conservation
When the step jumps unexpectedly, it can respond quickly, and the heavy-duty traffic escalator will stop in time.
The running direction indicator is located at the exit entrance of the handrail to display the running or no-go instructions to ensure the safety of passengers.
Equipped with LED lighting system to help passengers ride safely and save more than 80% energy.
When the foreign matter gets stuck between the comb teeth and the steps, the comb plate will move vertically or backwards and forwards, triggering the safety device to stop the escalator, making it easier to take out the foreign matter and facilitate maintenance.
1.Leading supplier and expoter in elevator.
2.We have various types of elevators, such as Passenger elevators, Home elevators, Stretcher elevators, Panorama elevators, and so on .
3.With the excellent after-saled service and warranty.
